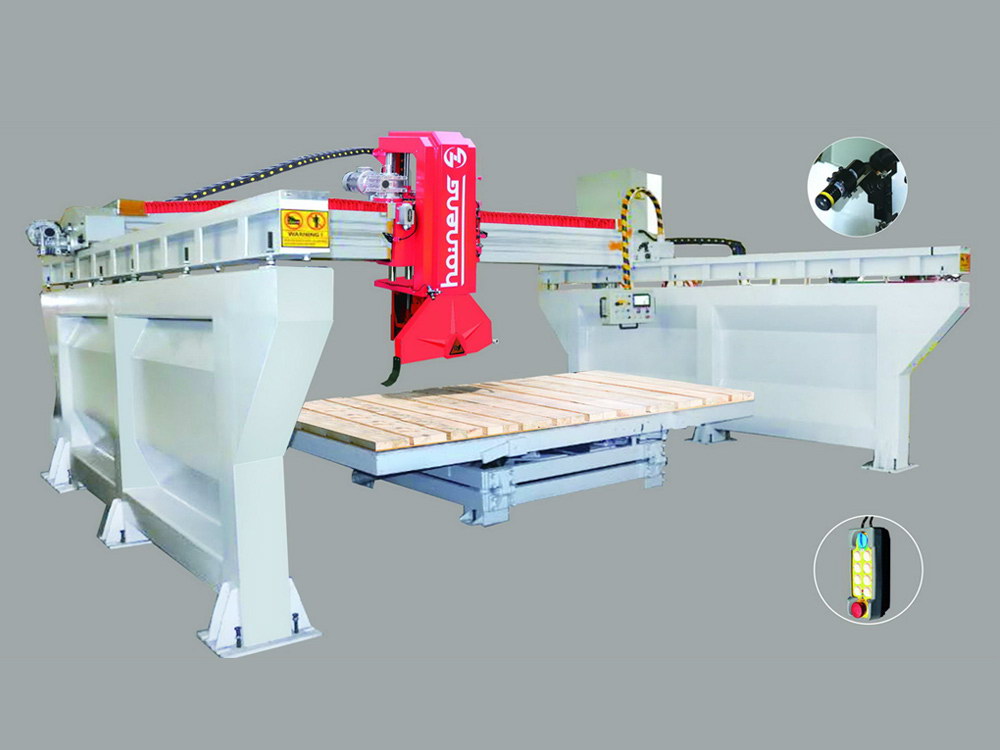

红外线（锯片倒角型）桥切机

产品介绍 PRODUCT INTRODUCTION

本机采用微电脑控制，触摸式操作界面，配无线遥控，人机对话灵活自如。

主要控制元件均采用国际品牌元件，横梁采用油漫式双Ⅴ型轨道，横向走刀采用无极调速、纵向分片机构采用高

精度磁珊计数，确保了机器工作精度。

锯片自动倾斜45度，工作台360度旋转每45度自动定位，可跳跃式定位，附带任意角度位置及车，可切矩形、

八边形、圆弧形、正圆形、倒中小角。

配备仿型系统及机构，不仅具备切边，倒角功能，还具备加工线条功能(选配)

This machine adopts microcomputer control, touch operation interface and wireless remote control, and the man-machine dialogue is

flexible

The main control components are all international famous brand components, the beam adopts oil-immersed double V-shaped track, the

transverse cutting adopts stepless speed regulation, and the longitudinal segmentation mechanism adopts high-precision magnetic

mountain counting to ensure the machine working precision

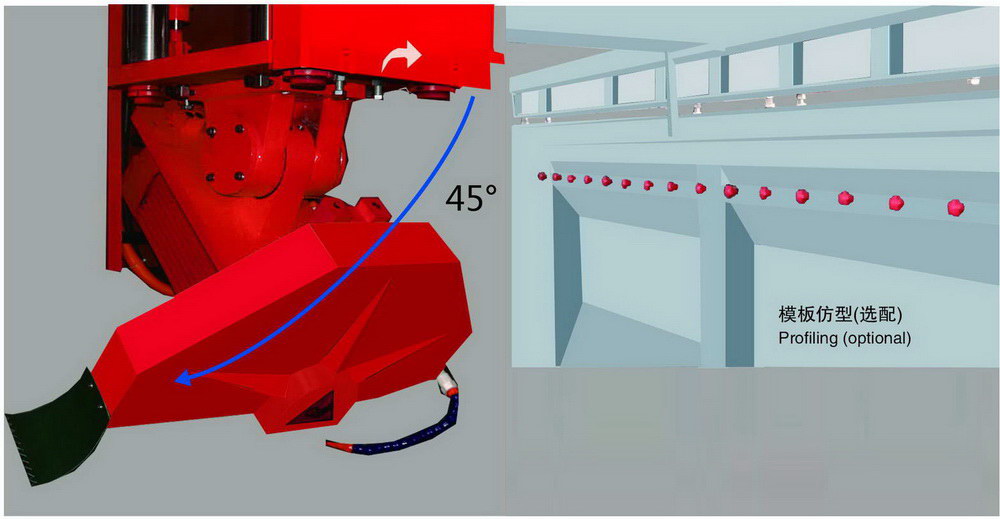

The saw blade is automatically tilted by 45 degrees, and the table is automatically rotated by 45 degrees per 45 degrees. It can be jumped

and positioned with any angular position and brake. It can cut rectangular, octagonal, cir cular, round, and small and medium angles. shape

Equipped with profiling system and mechanism, it not only has edge cutting, chamfering function, but also has profiling( optional).
