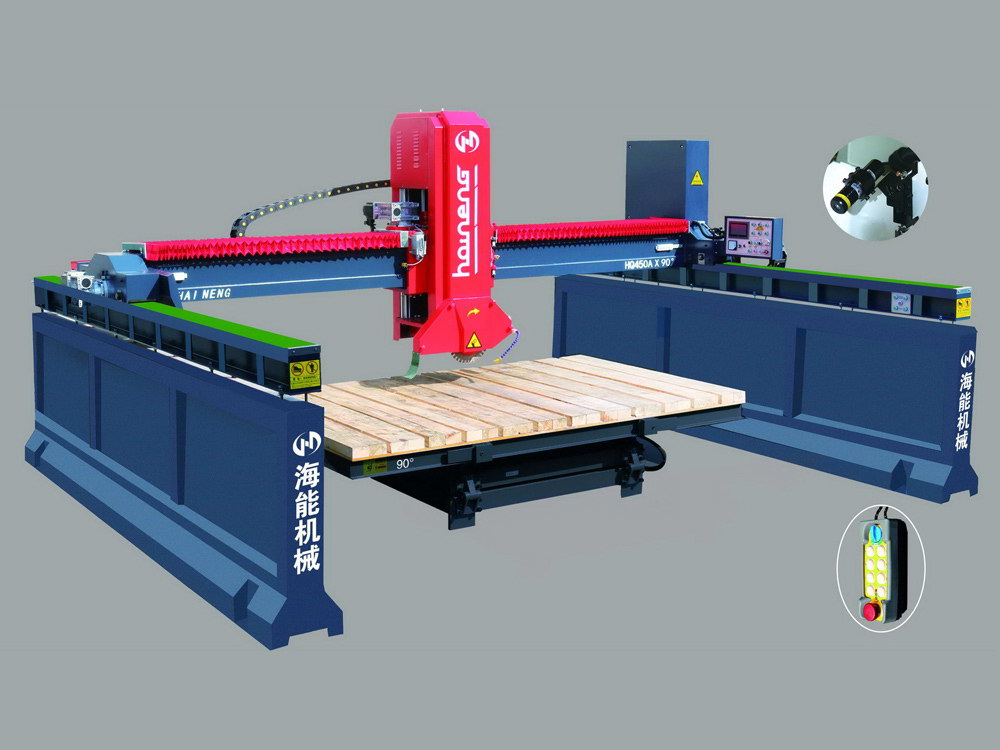

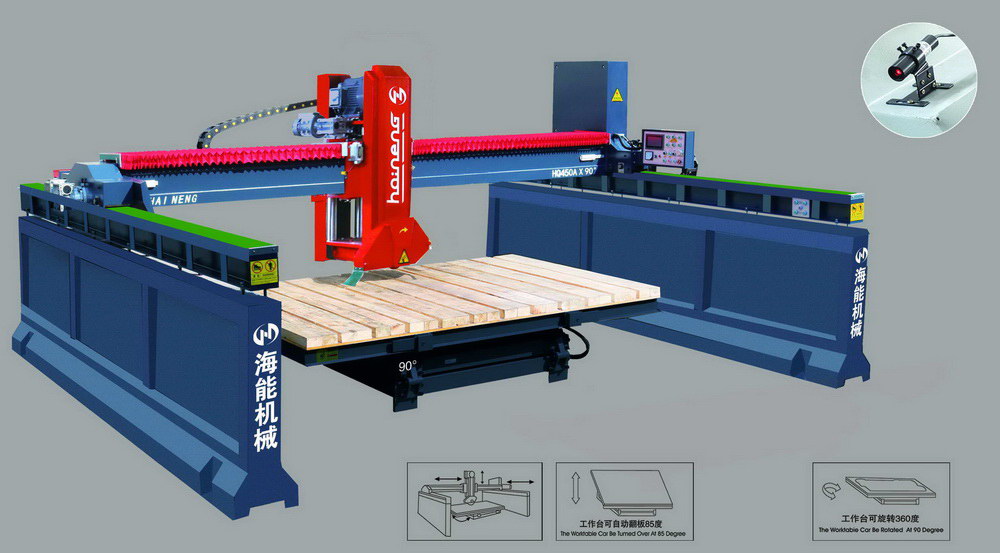

红外线桥式切石机

产品介绍 PRODUCT INTRODUCTION

本机采用微电脑控制，触摸式操作界面，人机对话灵活自如。

主要控制元件均采用国际品牌元件，横梁釆用油漫式双ν型轨道，横向走刀采用无极调速、纵向分片机构采用双

山形导轨结合高精度编码器计数，确保了机器工作精度。

标配0-90工作台,0一85度翻板，主要用于切高精度规格板。

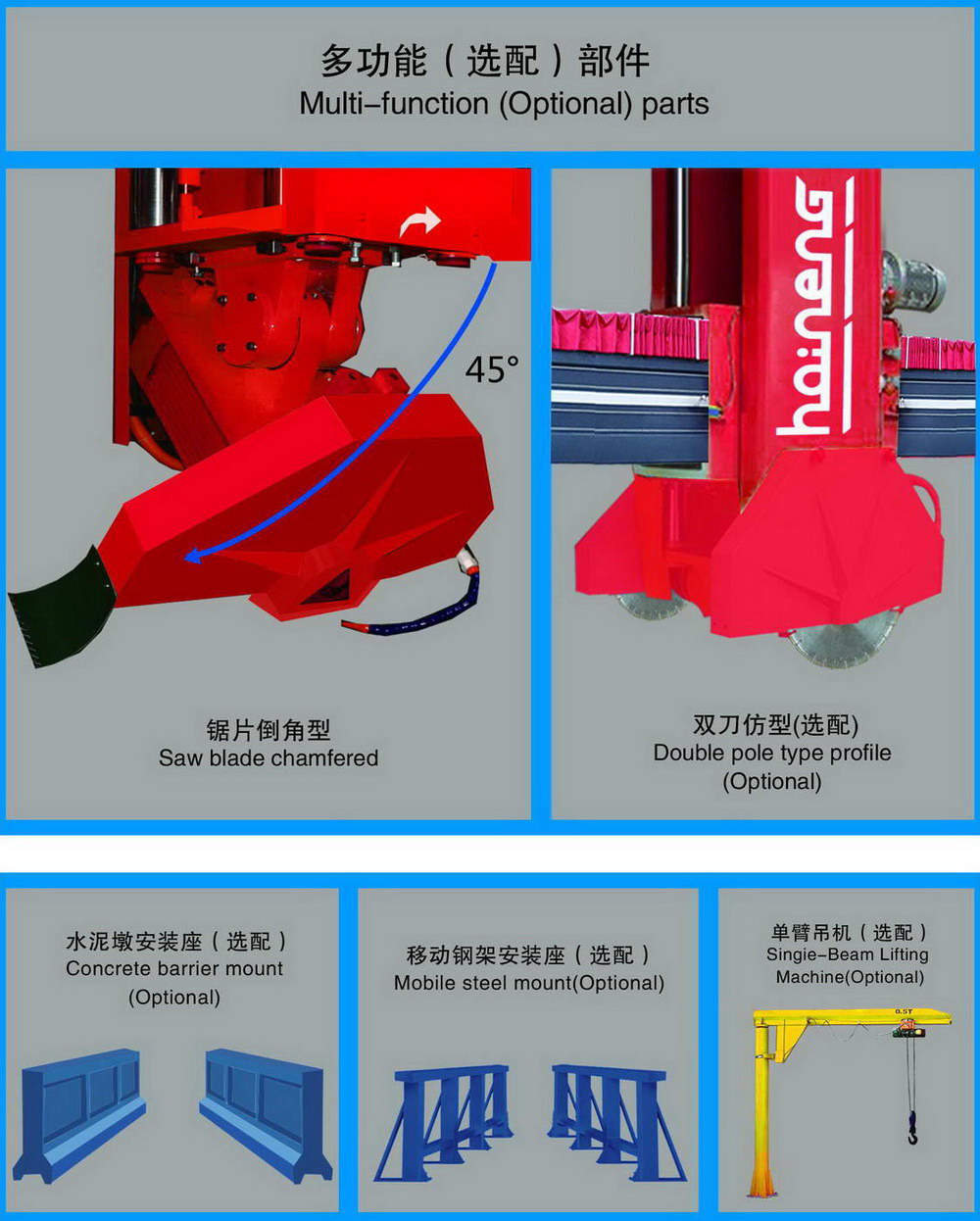

选配360度旋转每45度自动定位，主要用于切切矩形、八边形、圆弧形、正圆形。

The main control components are all international famous brand components, the cross-beam adopts ol-mible

This machine adopts microcomputer control, touch-type operation pannel, and man-machine dialogue is flex

mersed double V-shaped track, the transverse pass adopts stepless speed regulation, and the longitudinal splitting

mechanism adopts double mountain-shaped guide rail combined with high-precision encoder counting to ensure

the machine working precision

Standard with 0-90 workbench, 0-85 degree flap, mainly used to cut high-precision specification board

Optional with 360-degree rotation for automatic positioning with every 45 degrees, mainly used for cutting Rectangle,

octagon, arc and perfect circle
